Merge pull request #339 from hasecilu/master

3.5 in TFT display added and files renamed
2021-12-23 10:27:07 +01:00 · 2021-12-23 10:27:07 +01:00 · d6c698ef0c
commit d6c698ef0c
parent 898aa9d7c5 ba50c34063
25 changed files with 58971 additions and 703 deletions
--- a/Parts/Displays/TFT/2-4_tft_spi_240x320.png
+++ b/Parts/Displays/TFT/2-4_tft_spi_240x320.png
--- a/Parts/Displays/TFT/3.5_RPi_tft_display_spi_480x320.fcstd
+++ b/Parts/Displays/TFT/3.5_RPi_tft_display_spi_480x320.fcstd
--- a/Parts/Displays/TFT/3.5_RPi_tft_display_spi_480x320.png
+++ b/Parts/Displays/TFT/3.5_RPi_tft_display_spi_480x320.png
--- a/Parts/Displays/TFT/3.5_RPi_tft_display_spi_480x320.step
+++ b/Parts/Displays/TFT/3.5_RPi_tft_display_spi_480x320.step
--- a/Parts/Displays/TFT/3.5_RPi_tft_display_spi_480x320.stl
+++ b/Parts/Displays/TFT/3.5_RPi_tft_display_spi_480x320.stl
--- a/Parts/Displays/TFT/README.md
+++ b/Parts/Displays/TFT/README.md
@ -0,0 +1,17 @@
+# TFT Display
+
+In this folder you can find common available TFT displays.
+
+Don't forget to share your modifications with the community.
+
+## 2.4 in TFT display
+
+Commonly used with Arduino microcontroller boards.
+
+![2.4](2-4_tft_spi_240x320.png)
+

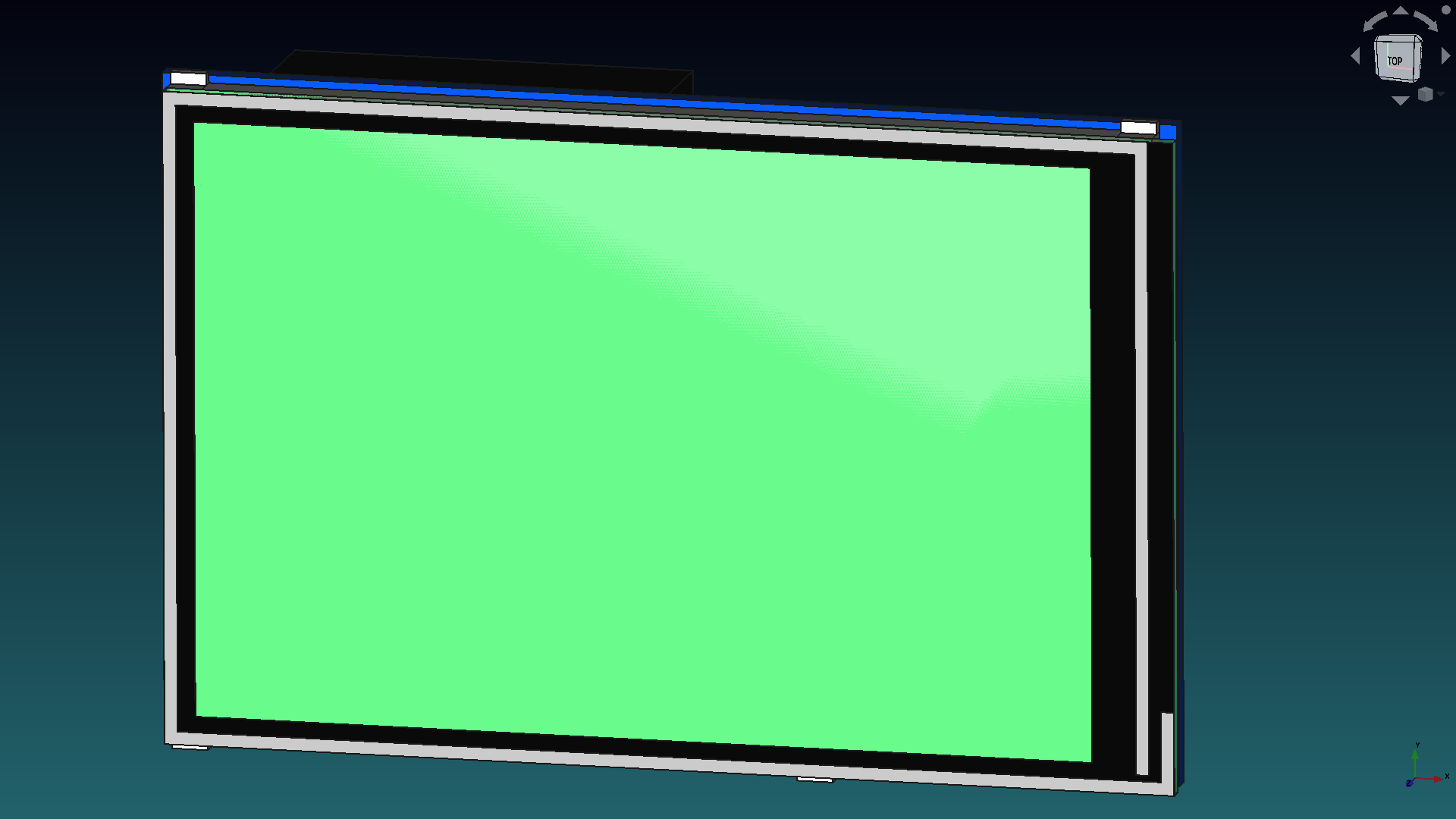

+## 3.5 in TFT display
+
+Commonly used with Raspberry Pi Single Board Computers.
+
+![3.5](3.5_RPi_tft_display_spi_480x320.png)
--- a/Parts/Switch/Microswitch
+++ b/Parts/Switch/Microswitch
--- a/Parts/Switch/Microswitch_SPDT_Horizontal_L.FCStd
+++ b/Parts/Switch/Microswitch_SPDT_Horizontal_L.FCStd
--- a/Parts/Switch/Microswitch_SPDT_Horizontal_L.png
+++ b/Parts/Switch/Microswitch_SPDT_Horizontal_L.png
--- a/Parts/Switch/Microswitch_SPDT_Horizontal_L.step
+++ b/Parts/Switch/Microswitch_SPDT_Horizontal_L.step
--- a/Parts/Switch/Microswitch_SPDT_Horizontal_L.stl
+++ b/Parts/Switch/Microswitch_SPDT_Horizontal_L.stl
--- a/Parts/Switch/Microswitch_SPDT_Horizontal_R.FCStd
+++ b/Parts/Switch/Microswitch_SPDT_Horizontal_R.FCStd
--- a/Parts/Switch/Microswitch_SPDT_Horizontal_R.png
+++ b/Parts/Switch/Microswitch_SPDT_Horizontal_R.png
--- a/Parts/Switch/Microswitch_SPDT_Horizontal_R.step
+++ b/Parts/Switch/Microswitch_SPDT_Horizontal_R.step
--- a/Parts/Switch/Microswitch_SPDT_Horizontal_R.stl
+++ b/Parts/Switch/Microswitch_SPDT_Horizontal_R.stl
--- a/Parts/Switch/Microswitch_SPDT_Vertical.FCStd
+++ b/Parts/Switch/Microswitch_SPDT_Vertical.FCStd
--- a/Parts/Switch/Microswitch_SPDT_Vertical.png
+++ b/Parts/Switch/Microswitch_SPDT_Vertical.png
--- a/Parts/Switch/Microswitch_SPDT_Vertical.step
+++ b/Parts/Switch/Microswitch_SPDT_Vertical.step
--- a/Parts/Switch/Microswitch_SPDT_Vertical.stl
+++ b/Parts/Switch/Microswitch_SPDT_Vertical.stl
--- a/Parts/Switch/README.md
+++ b/Parts/Switch/README.md
@ -2,17 +2,35 @@

 We have here a few models of switches

-## Mini Rocker Switch
+Feel free to change it to your needs and share it with us. 😀
+
+## Mini Rocker Switches
+
+### Without red LED

 ![Mini Rocker Switch](Mini%20Rocker%20Switch.png)

-## Mini Rocker Switch red led
+### With red LED

 ![Mini Rocker Switch red led](Mini%20Rocker%20Switch%20red%20led.png)

-## Microswitch SPDT Vertical
+## Microswitch SPDT from XKB Connectivity
+
+### Vertical

 This model is [XKB Connectivity DM1-16UP-1](https://lcsc.com/product-detail/Microswitches_XKB-Connectivity-DM1-16UP-1_C405950.html).
-Feel free to change it to your needs and share it with us. 😀

-![Microswitch SPDT Vertical](Microswitch%20SPDT%20Vertical.png)
+![Microswitch SPDT Vertical](Microswitch_SPDT_Vertical.png)
+

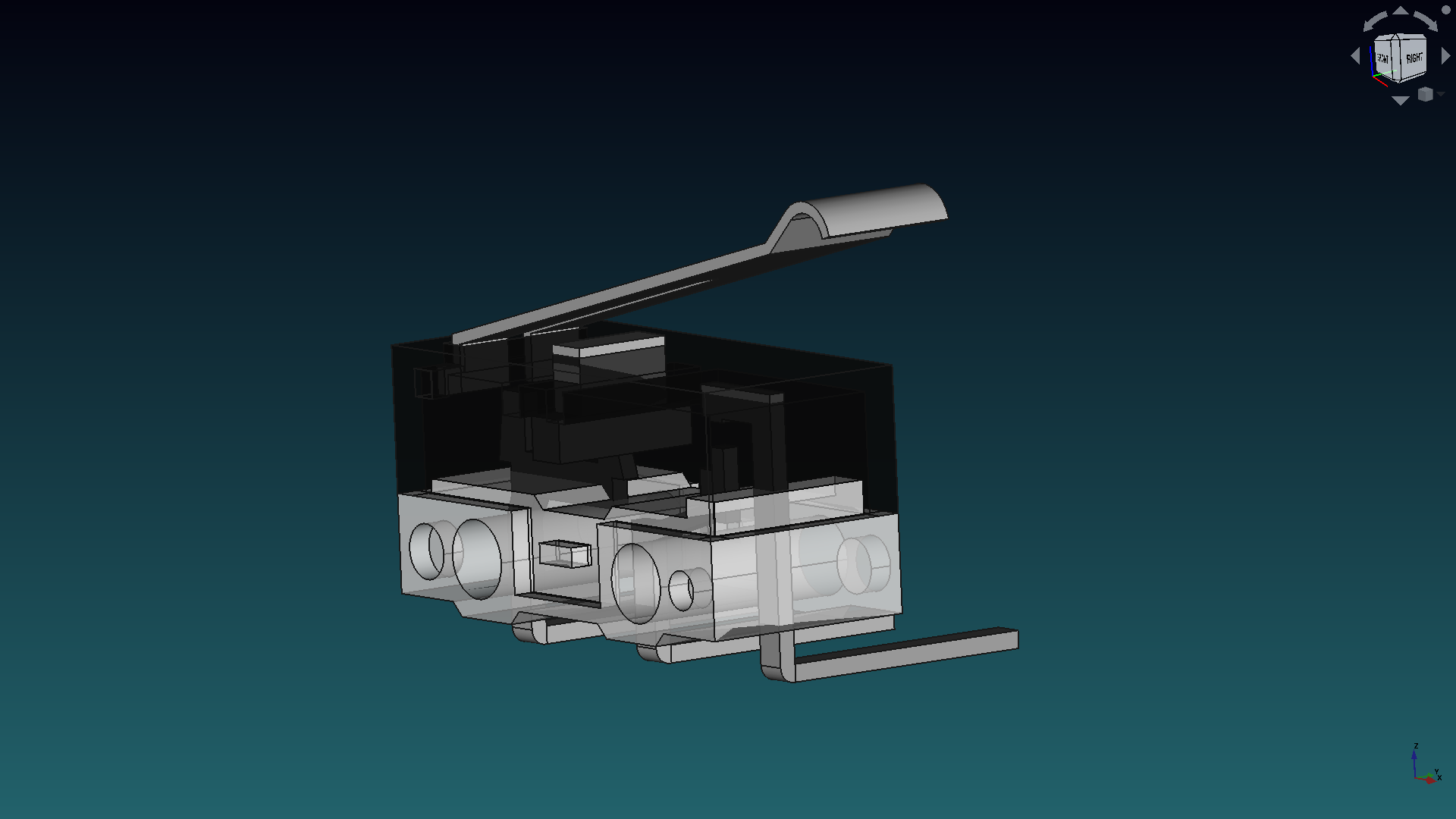

+### Horizontal right
+
+This model is [XKB Connectivity DM1-16UC-1](https://lcsc.com/product-detail/Microswitches_XKB-Connectivity-DM1-16UC-1_C466019.html).
+
+![Microswitch SPDT Horizontal R](Microswitch_SPDT_Horizontal_R.png)
+

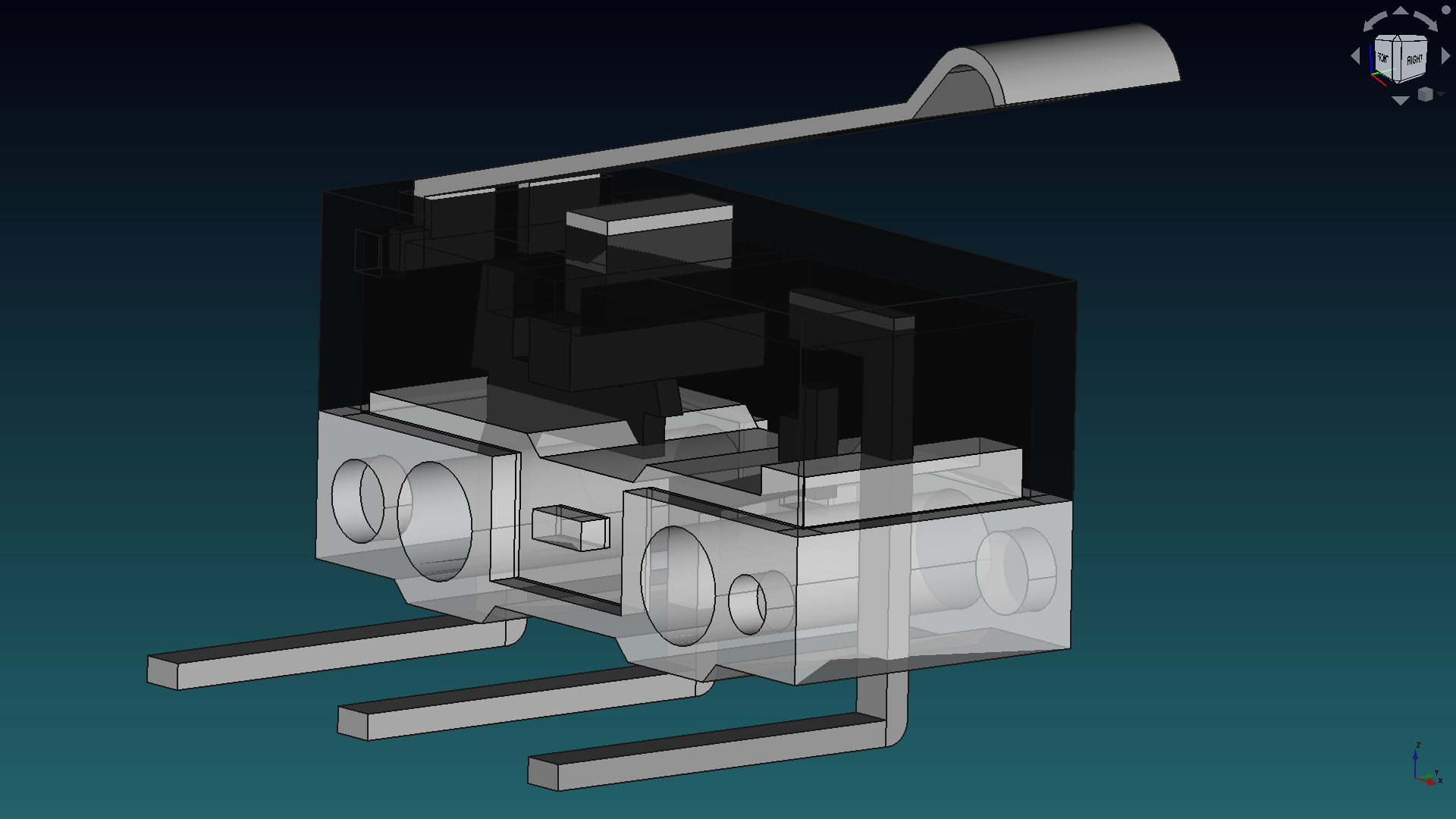

+### Horizontal left
+
+This model is [XKB Connectivity DM1-16UD-1](https://lcsc.com/product-detail/Microswitches_XKB-Connectivity-DM1-16UD-1_C466013.html).
+
+![Microswitch SPDT Horizontal L](Microswitch_SPDT_Horizontal_L.png)
+
--- a/Parts/Mountings/Gantry_plate/Gantry_plate_20mm_v_slot.FCStd
+++ b/Parts/Mountings/Gantry_plate/Gantry_plate_20mm_v_slot.FCStd
--- a/Parts/Mountings/Gantry_plate/Gantry_plate_20mm_v_slot.png
+++ b/Parts/Mountings/Gantry_plate/Gantry_plate_20mm_v_slot.png
--- a/Parts/Mountings/Gantry_plate/Gantry_plate_20mm_v_slot.step
+++ b/Parts/Mountings/Gantry_plate/Gantry_plate_20mm_v_slot.step
--- a/Parts/Mountings/Gantry_plate/Gantry_plate_20mm_v_slot.stl
+++ b/Parts/Mountings/Gantry_plate/Gantry_plate_20mm_v_slot.stl
--- a/Parts/Mountings/README.md
+++ b/Parts/Mountings/README.md
@ -10,7 +10,7 @@ Feel free to change it to your needs and share it with us. 😀

 This files have a wrong name. They are named as `v-slot_20mm` but are a gantry plate.

-![Gantry_plate](Gantry_plate/v-slot_20mm.png)
+![Gantry_plate](Gantry_plate/Gantry_plate_20mm_v_slot.png)


 ## Corner bracket
